Suncoast Audio Direct

Teac AP-505B Stereo Power Amplifier

$1,999.99

Description

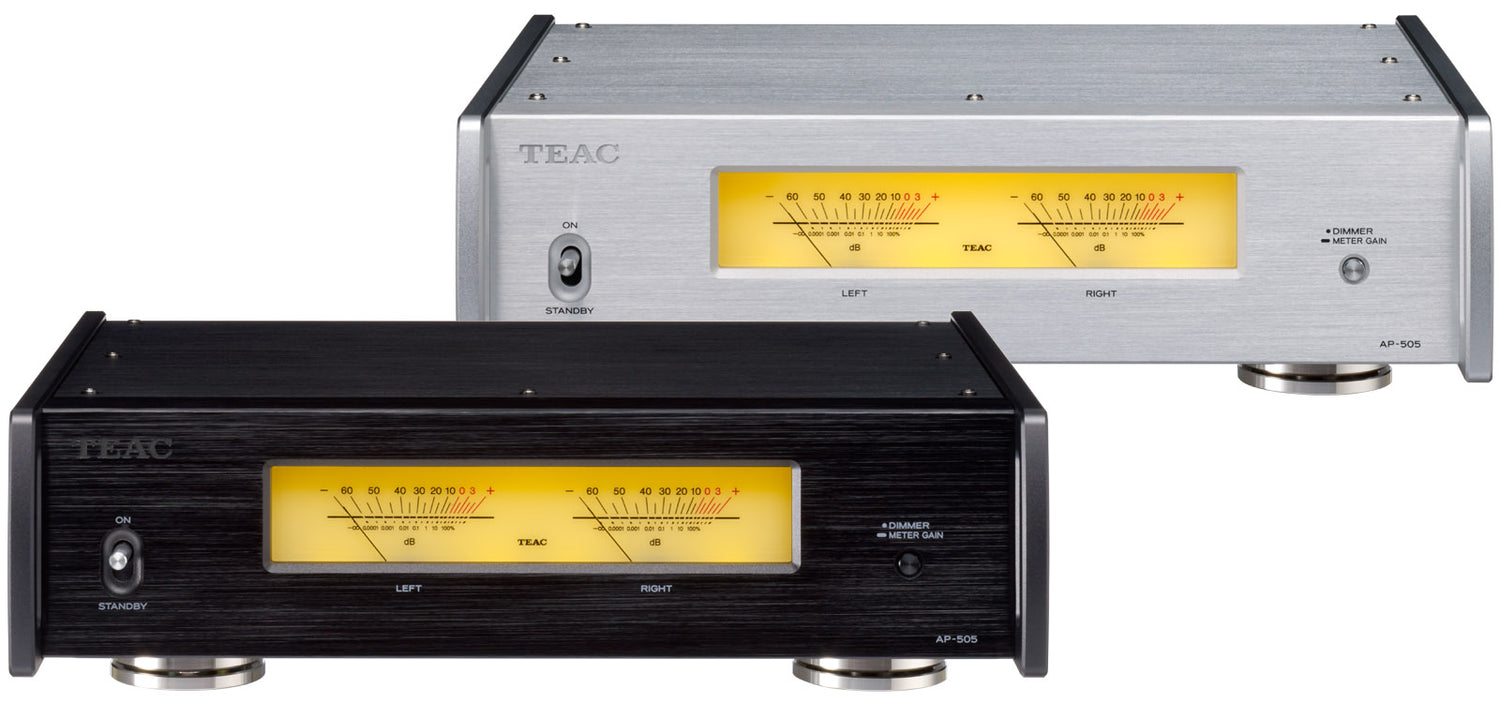

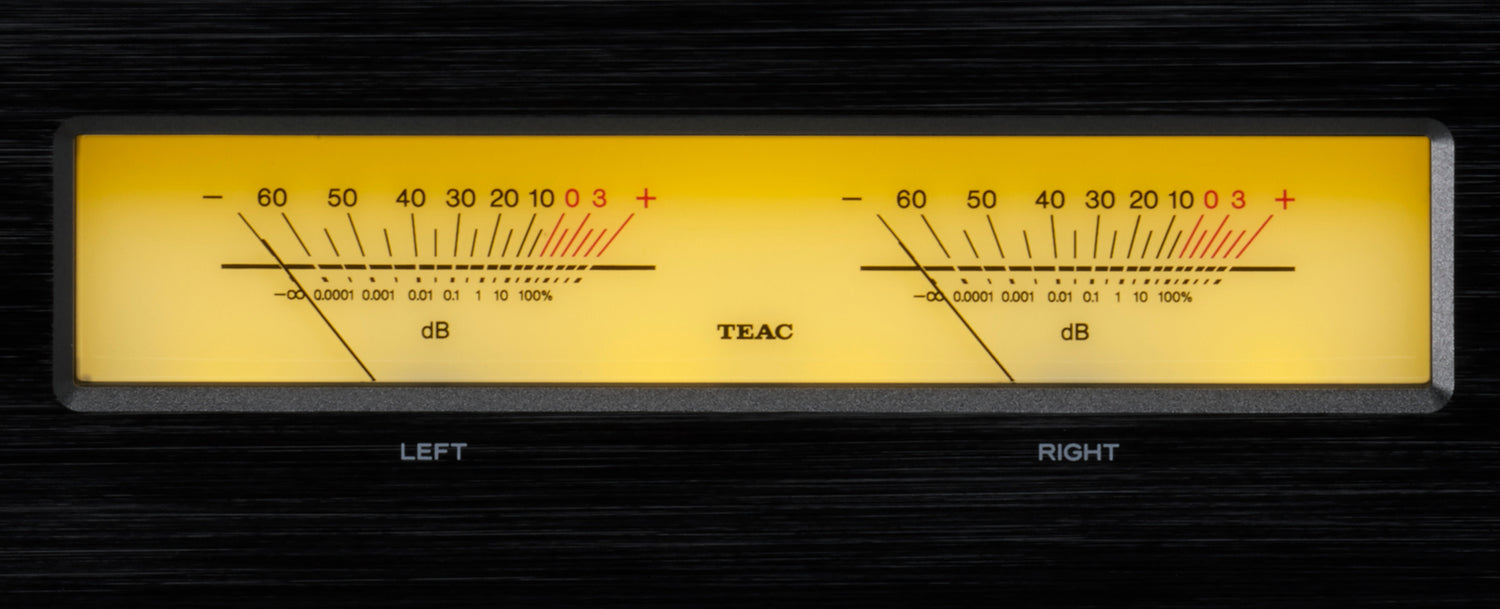

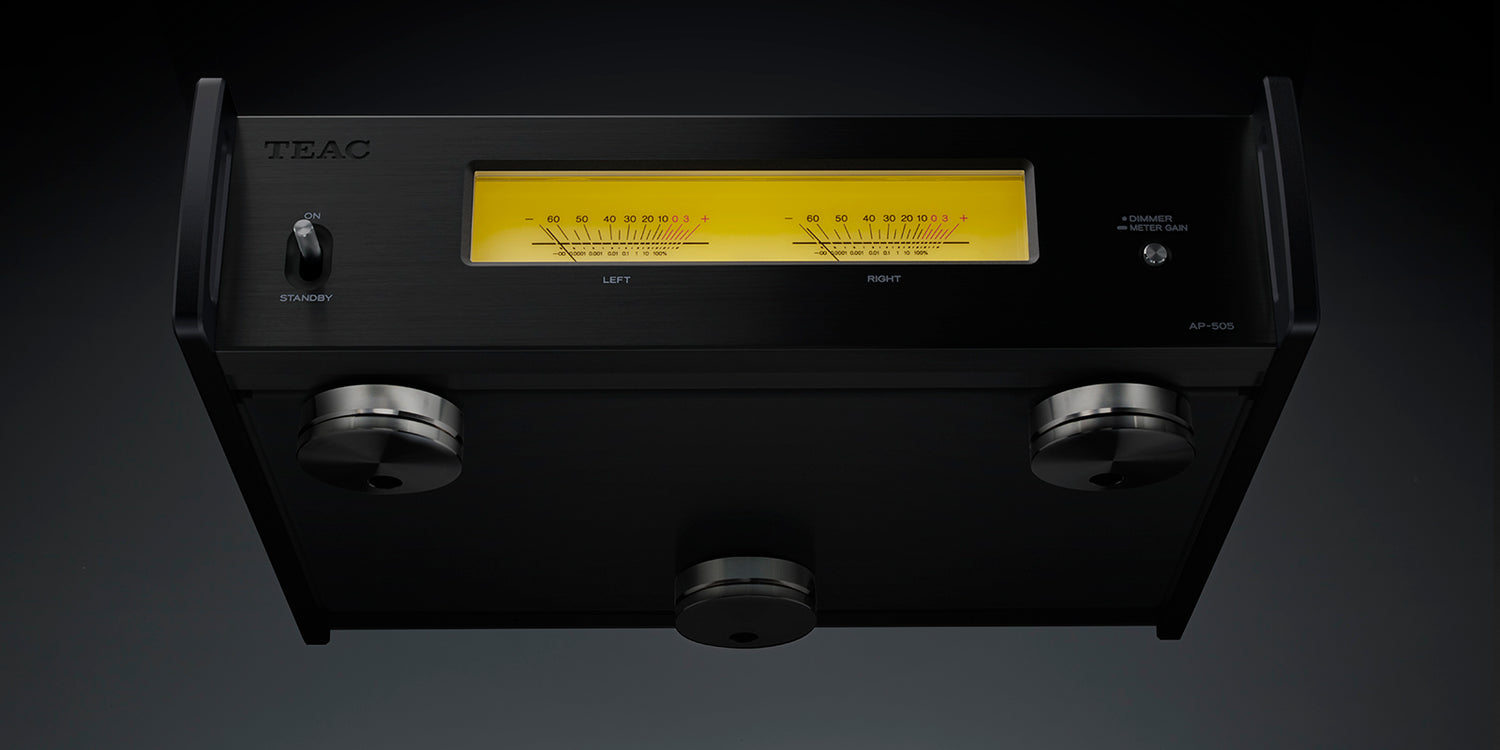

An ultra-compact stereo power amplifier, powered by Hypex Ncore technology,designed to enable Bi-amping, or use in BTL (Bridge Tied Load/Bridged) mode. The AP-505 is a versatile stereo power amplifier based around a high-performance, TEAC-tuned, Hypex Ncore power amplifier module, housed within a compact and elegant case. Capable of operating in bi-amp and BTL (Bridge Tied Load/Bridged) modes, in addition to conventional stereo operation, the AP-505 produces a maximum 130W + 130W of output power in stereo/bi-amp modes and 250W in BTL/bridged mode. At its heart is an Ncore power amplifier module, made by Hypex of the Netherlands and specially tuned by TEAC’s R&D team, for superlative sound quality As for the exterior, lightweight aluminum-alloy panels cover a robust steel chassis. A pair of large level meters add visual interest when the amplifier is in action, while TEAC's patent-pending ‘Pin-point’ feet, located at three strategic positions on the underside, add incision to the sound, helping to create a more detailed and stable stereo image.
*Loyalty power perk rewards terms and conditions

Earn [points_amount] when you buy this item.

Amplifier section
Maximum output power
Stereo, Bi-amp modes 130W + 130W (4Ω, 1kHz, JEITA)
90W + 90W (8Ω, 1kHz, JEITA)
BTL (Bridge) mode 250W (8Ω, 1kHz, JEITA)
Rate output over
Stereo, Bi-amp modes 115W + 115W (4Ω, 1kHz, THD 0.8%)
70W + 70W (8Ω, 1kHz, THD 0.8%)
BTL (Bridge) mode 220W (8Ω, 1kHz, THD 0.8%)
Total harmonic distortion 0.0015% (8Ω, 1kHz, 12.5W, JEITA)
Signal-to-Noise ratio 113dB (8Ω, 1kHz, IHF-A)
Frequency response 10Hz to 50,000Hz (+0dB, –5dB, 8Ω, 1W, JEITA)
Dumping factor 370 or higher, JEITA (20Hz to 20kHz, Output impedance: 22mΩ, 8Ω loaded)

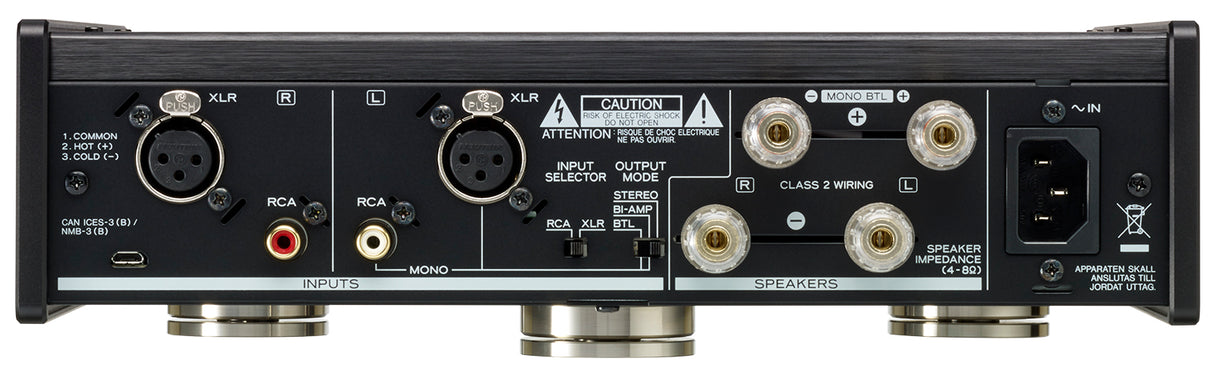

Input section
LINE IN (Balanced)
Connector XLR (2: HOT) × 1 pair
Input sensitivity 1.3V (Output 8Ω, THD 1%)
Input impedance 10kΩ or higher
LINE IN (Unbalance)
Connector RCA Pin (gold-plated) × 1 pair
Input sensitivity 0.66V (Output 8Ω, THD 1%)
Input impedance 10kΩ or higher
Speaker outputs
Connector Screw type × 1 set (gold-plated, AWG8 and Banana-plug compatible)
Compatible speaker impedance
Stereo, Bi-amp modes 4Ω to 16Ω
BTL (Bridge) mode 8Ω to 16Ω
Power
AC120V, 60Hz
AC220 - 240V, 50/60Hz
Power consumption 106W
Standby power 0.1W or less (at Auto power-saving mode)
Overall dimensions 290 × 84.5 × 271 mm / 11.4" × 3.3" × 10.7" (W × H × D)
Weight 4.4kg / 9.7 lbs.
Included accessories Power code, Owner's manual (incl. Warranty card)
* Design and specifications may subject to change without notice.
* RoHS complied

Shop all
Suncoast Audio Direct

Teac AP-505B Stereo Power Amplifier

$1,999.99

An ultra-compact stereo power amplifier, powered by Hypex Ncore technology,
designed to enable Bi-amping, or use in BTL (Bridge Tied Load/Bridged) mode.

The AP-505 is a versatile stereo power amplifier based around a high-performance, TEAC-tuned, Hypex Ncore power amplifier module, housed within a compact and elegant case.

Capable of operating in bi-amp and BTL (Bridge Tied Load/Bridged) modes, in addition to conventional stereo operation, the AP-505 produces a maximum 130W + 130W of output power in stereo/bi-amp modes and 250W in BTL/bridged mode. At its heart is an Ncore power amplifier module, made by Hypex of the Netherlands and specially tuned by TEAC’s R&D team, for superlative sound quality

As for the exterior, lightweight aluminum-alloy panels cover a robust steel chassis. A pair of large level meters add visual interest when the amplifier is in action, while TEAC's patent-pending ‘Pin-point’ feet, located at three strategic positions on the underside, add incision to the sound, helping to create a more detailed and stable stereo image.
