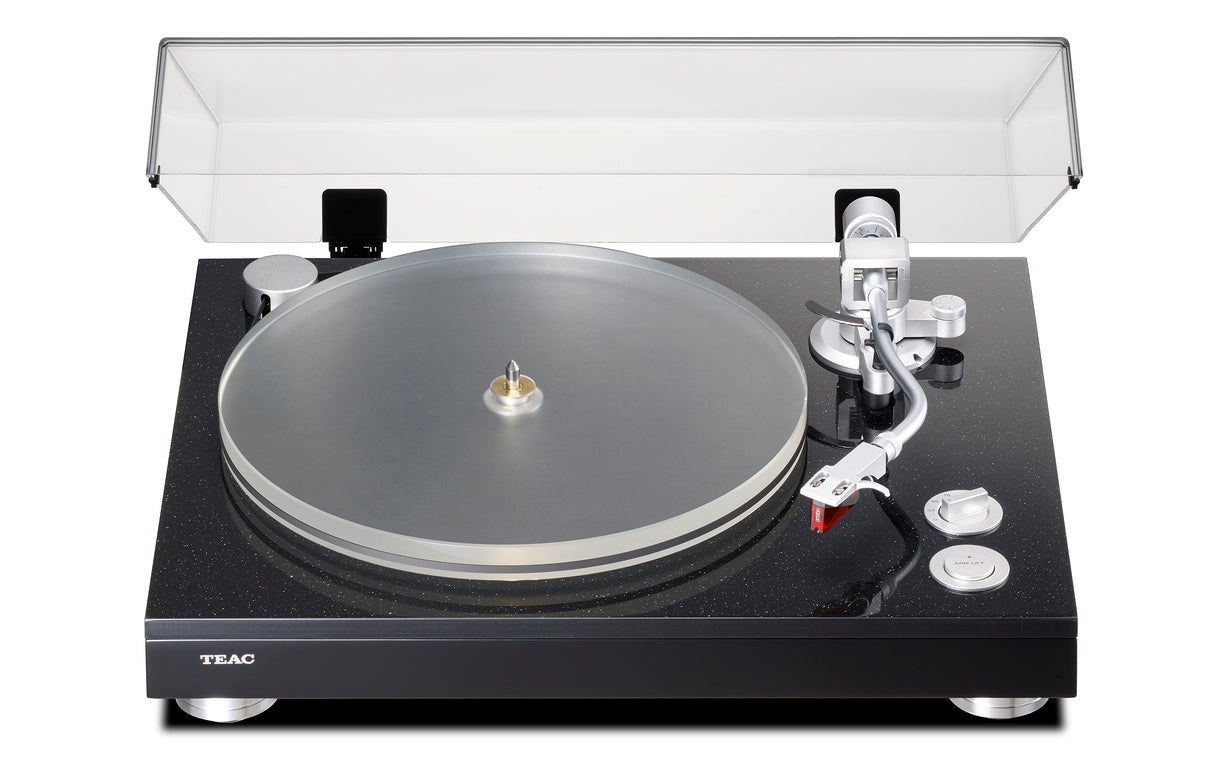

Teac TN-5BB-MB Manual Belt-Drive Turntable - Balanced Outputs - SAEC Tone Arm - Hybrid Marble Black Plinth

$1,799.99

Description
An Authentic Belt Drive Analog Turntable with XLR Balanced Output. This analog turntable, which supports MC balanced output, features a hybrid chassis that combines synthetic marble, washi paper and MDF materials along with a 9-inch S-shaped universal arm that utilizes a knife-edge bearing.Turntables are the stages for drawing out the passion of the artists and the magic of their engineers that have been infused into records. With jet black synthetic marble and MDF finished in piano black, the TN-5BB is a truly worthy stage that achieves both functional suppression of unwanted vibrations as well a stately and modern design.Using the built-in XLR jacks to team up with a phono amplifier that supports balanced connection, the slightest signals transmitted by the cartridge can be re-created with even greater intensity.The knife-edge tone arm, which is an SAEC×TEAC collaboration, is another component that further enhances this musical stage. The 20mm thick acrylic platter is driven by our original Platter Rotation Sensing Servo System (PRS3).
*Loyalty power perk rewards terms and conditions

Earn [points_amount] when you buy this item.

Turntable section
Drive system Rotation-detection-type high-precision control belt drive
Motor DC motor
Rotation speed 33-⅓rpm, 45rpm, 78prm
Wow and flutter 0.1% or less
Platter Acrylic, 30cm diameter
Tonearm section
Arm type Static-balanced S-shaped tone arm
Effective arm length 223mm
Suitable cartridge weight 3.0 to 12.0g (14 to 23 g including head-shell)
Overhang 18mm
Arm height adjustment range approx. 6mm
Cartridge section
Type MM
Output voltage 5.5 mV (1kHz, 5cm/s)
Tracking force 1.8g
Cartridge weight 7.2g
Included head-shell weight: 11g (including screws, nuts and wires)
Replacement record stylus model Ortofon 2M Red • Stylus lifespan depends on use conditions but is usually about 1000 hours.
Phono Outputs
Balanced
Connector XLR × 1 pair
Unbalanced
Connector RCA × 1 pair
Power AC 100 to 240V, 50/60Hz (AC Adapter)
Power Consumption 2.0W or less (0.3W at Standby)
Overall Dimensions (W×H×D) 450 × 148 × 351 mm / 17.1" × 5.8" × 13.8" (with dust cover closed)
450 × 420 × 410 mm / 17.1" × 16.5" × 16.1" (with dust cover open)
450 × 135 × 351 mm / 17.1" × 5.3" × 13.8" (with dust cover removed)
Including protrusions (when arm holder at the highest position)
Weight approx. 10.5kg / 23.2 lbs.
Included accessories 45RPM adapter × 1, Counter Weight × 1, Head-shell (Ortofon 2M Red installed) × 1, Platter × 1, Flat Belt × 1, Pulley Cover × 1, Dust Cover × 1, Hinge × 2, Foot height adjustment washers × 4, Arm height adjustment hex wrench × 1, RCA Audio Cable × 1, Ground wire × 1, AC Adapter (GPE018S-120100-Z) × 1, Cartridge Alignment Gauge × 1, User Manual × 1
